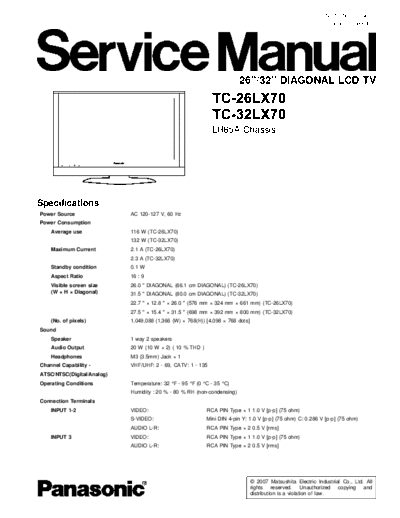

LH65A TC-26LX70 TC-32LX70


>> Download LH65A TC-26LX70 TC-32LX70 documenatation <<

Text preview - extract from the document
                                                                                                      ORDER NO.MTNC070304CE
                                                                                                               B05 Canada: B07




                                                                         26"/32" DIAGONAL LCD TV



                                                             LH65A Chassis




Specifications
Power Source                AC 120-127 V, 60 Hz
Power Consumption
    Average use             116 W (TC-26LX70)
                            132 W (TC-32LX70)
    Maximum Current         2.1 A (TC-26LX70)
                            2.3 A (TC-32LX70)
    Standby condition       0.1 W
    Aspect Ratio            16 : 9
    Visible screen size     26.0 " DIAGONAL (66.1 cm DIAGONAL) (TC-26LX70)
