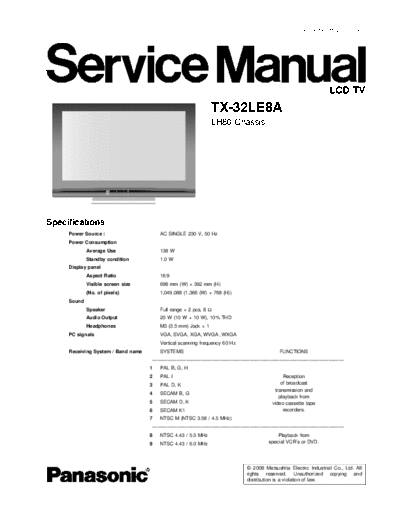

Image preview - the first page of the document



>> Download LH80 TX-32LE8A documenatation <<

Text preview - extract from the document

                                                                                                      ORDER NO. MTV0801639CE




                                                                                                                   LCD TV
                                                                  TX-32LE8A
                                                                  LH80 Chassis




Specifications
     Power Source :                        AC SINGLE 230 V, 50 Hz
     Power Consumption
             Average Use                   138 W
             Standby condition             1.0 W
     Display panel
             Aspect Ratio                  16:9
             Visible screen size           698 mm (W)
