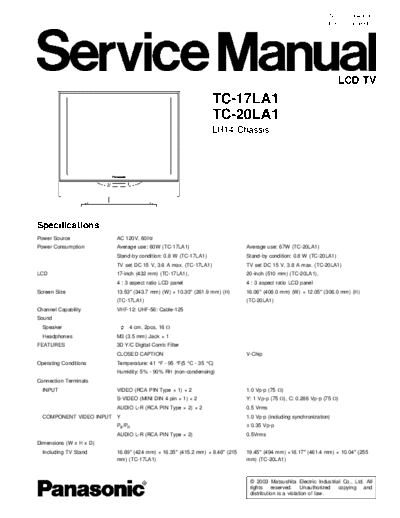

LH14 TC-17LA1 TC-20LA1


>> Download LH14 TC-17LA1 TC-20LA1 documenatation <<

Text preview - extract from the document
                                                                                                      ORDER NO. ITD0304003C1
                                                                                                            B05   Canada:B07




                                                                                                                   LCD TV
                                                                 TC-17LA1
                                                                 TC-20LA1
                                                                 LH14 Chassis




Specifications
Power Source             AC 120V, 60Hz
Power Consumption        Average use: 60W (TC-17LA1)                        Average use: 67W (TC-20LA1)
                         Stand-by condition: 0.8 W (TC-17LA1)               Stand-by condition: 0.8 W (TC-20LA1)
                         TV set DC 15 V, 3.6 A max. (TC-17LA1)              TV set DC 15 V, 3.8 A max. (TC-20LA1)
LCD                      17-inch (432 mm) (TC-17LA1),                       20-inch (510 mm) (TC-20LA1),
                         4 : 3 aspect ratio LCD panel                       4 : 3 aspect ratio LCD panel
Screen Size              13.53" (343.7 mm) (W)
