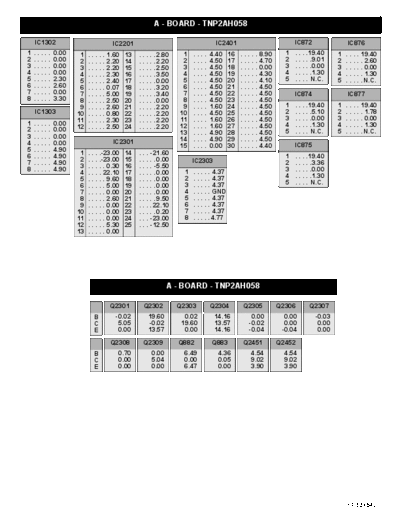

Image preview - the first page of the document
>> Download volt_gn1p documenatation <<
Text preview - extract from the document
A - BOARD - TNP2AH058
IC1302 IC2201 IC2401 IC872 IC876
1 ..... 0.00 1 ..... 1.60 13 . . . . . 2.80 1 .... 4.40 16 ..... 8.90 1 . . . .19.40 1 . . . . 19.40
2 ..... 0.00 2 ..... 2.20 14 . . . . . 2.20 2 .... 4.50 17 ..... 4.70 2 . . . . .9.01 2 . . . . . 2.60
3 ..... 0.00 3 ..... 2.20 15 . . . . . 2.50 3 .... 4.50 18 ..... 0.00 3 . . . . .0.00 3 . . . . . 0.00
4 ..... 0.00 4 ..... 2.30 16 . . . . . 3.50 4 .... 4.50 19 ..... 4.30 4 . . . . .1.30 4 . . . . . 1.30
5 ..... 2.30 5 ..... 2.40 17 . . . . . 0.00 5 .... 4.50 20 ..... 4.10 5 . . . . N.C. 5 . . . . . N.C.
6 ..... 2.60 6 ..... 0.07 18 . . . . . 3.20 6 .... 4.50 21 ..... 4.50
7 ..... 0.00 7 ..... 5.00 19 . . . . . 3.40 7 .... 4.50 22 ..... 4.50 IC874 IC877
8 ..... 3.30 8 ..... 2.50 20 . . . . . 0.00 8 .... 4.50 23 ..... 4.50
9 ..... 2.60 21 . . . . . 2.20 9 .... 1.60 24 ..... 4.50 1 . . . .19.40 1 . . . . 19.40
IC1303 10 ..... 0.80 22 . . . . . 2.20 10 .... 4.50 25 ..... 4.50 2 . . . . .5.10 2 . . . . . 1.78
11 ..... 2.30 23 . . . . . 2.20 11 .... 1.60 26 ..... 4.50 3 . . . . .0.00 3 . . . . . 0.00
1 ..... 0.00 12 .... 1.60 27 ..... 4.50 4 . . . . .1.30 4 . . . . . 1.30
2 ..... 0.00 12 ..... 2.50 24 . . . . . 2.20
13 .... 4.90 28 ..... 4.50 5 . . . . N.C. 5 . . . . . N.C.
3 ..... 0.00 14 .... 4.90 29 ..... 4.50
4 ..... 0.00 IC2301 IC875
15 .... 0.00 30 ..... 4.40
5 ..... 4.90
6 ..... 4.90 1 . . . .-23.00 14 . . . -21.60 1 . . . .19.40
7 ..... 4.90 2 . . . .-23.00 15 . . . . . 0.00 IC2303 2 . . . . .3.36
8 ..... 4.90 3 . . . . . 0.30 16 . . . . -5.50 3 . . . . .0.00
4 . . . . 22.10 17 . . . . . 0.00 1 . . . . . 4.37
2 . . . . . 4.37 4 . . . . .1.30
5 . . . . . 9.60 18 . . . . . 0.00 5 . . . . N.C.
6 . . . . . 5.00 19 . . . . . 0.00 3 . . . . . 4.37
7 . . . . . 0.00 20 . . . . . 0.00 4 . . . . . GND
8 . . . . . 2.60 21 . . . . . 9.50 5 . . . . . 4.37
9 . . . . . 0.00 22 . . . . 22.10 6 . . . . . 4.37
10 . . . . . 0.00 23 . . . . . 0.20 7 . . . . . 4.37
11 . . . . . 0.00 24 . . . -23.00 8 . . . . . 4.77
12 . . . . . 5.30 25 . . . -12.50
13 . . . . . 0.00
A - BOARD - TNP2AH058
Q2301 Q2302 Q2303 Q2304 Q2305 Q2306 Q2307
B -0.02 19.60 0.02 14.16 0.00 0.00 -0.03
C 5.05 -0.02 19.60 13.57 -0.02 0.00 0.00
E 0.00 13.57 0.00 14.16 -0.04 -0.04 0.00
Q2308 Q2309 Q882 Q883 Q2451 Q2452
B 0.70 0.00 6.49 4.36 4.54 4.54
C 0.00 5.04 0.00 0.05 9.02 9.02
E 0.00 0.00 6.47 0.00 3.90 3.90
PT-53X54J
D - BOARD - TNP2AH059
IC1501 IC701 IC7001 IC801 IC811
1 . . . .10.80 1 . . . . . 0.20 1 . . . . . 0.00 10 . . . . 19.30 1 . . . . . 1.40 1 . . . . 19.50
2 . . . . .0.00 2 . . . . . 5.30 2 . . . . . 0.00 11 . . . . . 0.00 2 . . . . . 0.40 2 . . . . 18.50
3 . . . . .0.00 3 . . . . . 4.70 3 . . . -19.40 12 . . . -20.50 3 . . . . . 0.00 3 . . . 0.00
4 . . . . .0.00 4 . . . . . 0.00 4 . . . -20.50 13 . . . . . 0.00 4 . . . . . 0.00 4 . . . 5.90
5 . . . . .2.40 5 . . . . . 1.60 5 . . . . 19.30 14 . . . . . 0.00 5 . . . . . 0.00
6 . . . . .2.40 6 . . . . . 0.70 6 . . . . -0.30 15 . . . . -0.20 6 . . . . . 5.70
7 . . . . .1.40 7 . . . . . 9.50 7 . . . . -0.30 16 . . . . -0.20 7 . . . . 20.50
8 . . . .12.00 8 . . . . 12.00 8 . . . -20.40 17 . . . -20.50 8 . . . . . 0.00
9 . . . . -0.30 18 . . . . . 0.00 9 . . . . . 6.00
IC451
1 . . . . .0.00 IC7002 IC802
2 . . . .17.30 1 . . . . . 0.00 10 . . . . 19.30 1 . . . 139.40
3 . . . -17.00 2 . . . . . 0.00 11 . . . . -0.40 2 . . . . 18.50
4 . . . -18.50 3 . . . -19.40 12 . . . . -0.40 3 . . . . . 0.00
5 . . . . -0.10 4 . . . -20.50 13 . . . . . 0.20
6 . . . .17.10 5 . . . . 19.30 14 . . . . . 0.00 IC805
7 . . . . .0.00 6 . . . . -0.10 15 . . . . -0.20
7 . . . . -0.10 16 . . . . -0.00 1 . . . . 19.70
8 . . . -20.40 17 . . . -20.50 2 . . . . . 0.00
9 . . . . -0.10 18 . . . . . 0.00 3 . . . . 12.00
Q1503 Q1504 Q1505 Q406 Q501 Q509 Q510 Q512
B 9.80 12.00 6.10 -0.70 G 5.30 B 29.10 31.60 4.40
C 6.20 404.80 10.40 0.00 D 16.50 C 138.90 138.90 8.30
E 10.40 11.40 6.60 0.00 S 0.00 E 31.60 31.10 3.80
Q513 Q551 Q606 Q701 Q7006 Q7007 Q7060 Q7061
B 0.30 -0.20 0.00 G 9.50 B -20.50 -20.50 19.30 -20.50
C 5.30 -98.90 9.80 D 27.00 C -19.40 -19.40 0.00 19.30
E 0.00 0.00 0.00 S 0.00 E -20.50 -20.50 19.50 -20.70
Q801 Q802 Q803 Q854
G 5.50 B 0.70 20.50 138.90
S 0.01 C 0.20 0.00 0.00
D 43.30 E 0.00 20.50 139.20
PT-53X54J
LG - BOARD - TNP2AA160
IC880 Q331 Q373 Q374 Q375 Q934 Q935 Q936 Q937
1 . . . . 18.30 B 4.10 12.00 172.10 171.00 0.00 0.00 0.70 0.00
2 . . . . . 0.00 C 11.60 170.70 218.80 0.40 0.00 19.30 19.30 0.00
3 . . . . 12.00 E 3.80 11.60 171.60 171.60 0.70 0.00 0.40 0.40
Q938 Q941 Q951 Q952 Q953 Q955 Q956
B 137.90 1.00 -0.90 -1.10 -1.10 129.70 9.60
C 130.10 9.00 19.30 19.30 19.30 70.00 70.00
E 138.60 0.30 0.00 0.00 0.00 130.10 9.00
LB - BOARD - TNP2AA161
Q361 Q362 Q363 Q364 Q365 Q366 Q368 Q393 Q394
B 5.20 4.50 3.90 3.90 5.90 5.10 0.00 12.00 176.10
C 12.00 12.00 11.50 0.00 12.00 12.00 0.00 174.80 218.00
E 4.50 3.90 3.70 3.50 5.30 4.50 0.40 11.60 175.70
Q395 Q959 Q960 Q961 Q964 Q965 Q966 Q967 Q968
B 174.60 129.40 9.60 137.90 1.00 0.00 0.00 0.70 0.00
C 0.40 71.00 71.00 130.00 9.00 0.00 19.30 19.30 0.00
E 175.40 130.00 9.10 138.50 0.40 0.70 0.00 0.40 0.40
LR - BOARD - TNP2AA162
Q301 Q302 Q303 Q353 Q354 Q355 Q901
B 0.00 0.60 0.60 12.00 176.30 175.00 137.90
C 215.00 0.00 0.00 174.70 218.30 0.00 130.10
E 0.00 0.00 0.00 11.50 175.90 175.60 138.50
Q903 Q904 Q905 Q906 Q907 Q957 Q958
B 0.10 1.00 0.10 0.70 0.00 129.40 9.43
C 0.00 8.90 19.30 19.30 0.00 69.60 69.60
E 0.80 0.30 0.00 0.40 0.40 130.00 8.86
PT-53X54J
