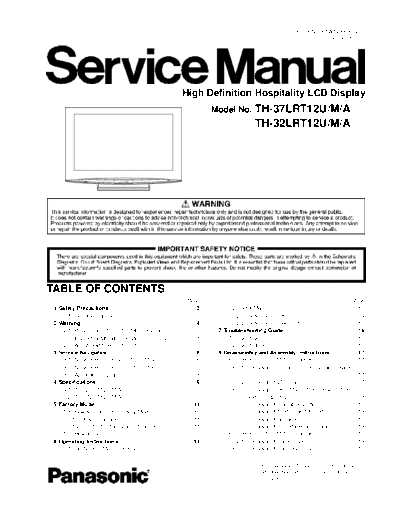

Image preview - the first page of the document
>> Download TH-37LRT12U TH-37LRT12M TH-37LRT12A TH-32LRT12U TH-32LRT12M TH-32LRT12A documenatation <<
Text preview - extract from the document
ORDER NO. PTWTV0909002CE
B34 Canada: D10
High Definition Hospitality LCD Display
Model No. TH-37LRT12U/M/A
TH-32LRT12U/M/A
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 6.2. Hotel Mode ------------------------------------------------ 14
1.1. General Guidelines---------------------------------------- 3 6.2.1. Hotel mode setup ----------------------------------- 14
2 Warning -------------------------------------------------------------- 4 6.2.2. Hotel mode menu list ------------------------------- 15
2.1. Prevention of Electrostatic Discharge (ESD) 7 Troubleshooting Guide --------------------------------------- 16
to Electrostatically Sensitive (ES) Devices---------- 4 7.1. No Power--------------------------------------------------- 16
2.2. About lead free solder (PbF)---------------------------- 5 7.2. No Picture-------------------------------------------------- 16
3 Service Navigation ----------------------------------------------- 6 8 Disassembly and Assembly Instructions--------------- 17
3.1. Service Hint (TH-32LRT12U/M/A)--------------------- 6 8.1. TH-32LRT12U/M/A Instructions ---------------------- 17
3.2. Service Hint (TH-37LRT12U/M/A)--------------------- 7 8.1.1. Removal of Pedestal Assy and Back
3.3. Applicable signals ----------------------------------------- 8 Cover --------------------------------------------------- 17
4 Specifications ----------------------------------------------------- 9 8.1.2. Removal of EMI Case Unit------------------------ 17
4.1. TH-32LRT12U/M/A---------------------------------------- 9 8.1.3. Removal of the Main PCB, Power PCB,
4.2. TH-37LRT12U/M/A---------------------------------------10 and RS232 PCB ------------------------------------- 18
5 Factory Mode -----------------------------------------------------11 8.1.4. Removal of Operation Button -------------------- 18
5.1. How to enter into Factory Mode ---------------------- 11 8.1.5. Removal of IR PCB and AV3 PCB -------------- 18
5.1.1. Key command ---------------------------------------- 11 8.1.6. Removal of Speaker (L, R)------------------------ 18
5.1.2. Contents of adjustment mode -------------------- 11 8.1.7. Removal of LCD Panel and Cabinet ----------- 19
5.2. How to exit -------------------------------------------------12 8.2. TH-37LRT12U/M/A Instructions ---------------------- 19
6 Operating Instructions-----------------------------------------13 8.2.1. Removal of Back Cover --------------------------- 19
6.1. On-Screen Menu Display-------------------------------13 8.2.2. Removal of Pedestal Assy ------------------------ 19
