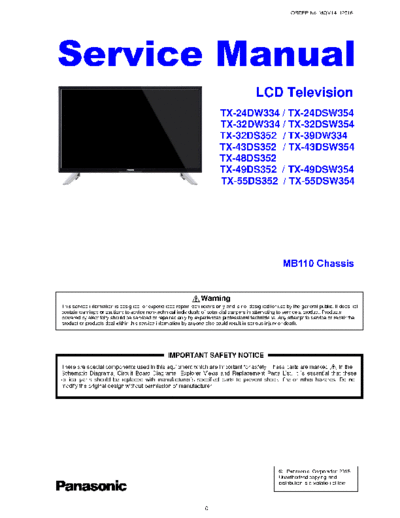

Image preview - the first page of the document
>> Download MQM14112016_MB110_V1 documenatation <<
Text preview - extract from the document
ORDER No. MQM14112016
Service Manual
LCD Television
TX-24DW334 / TX-24DSW354
TX-32DW334 / TX-32DSW354
TX-32DS352 / TX-39DW334
TX-43DS352 / TX-43DSW354
TX-48DS352
TX-49DS352 / TX-49DSW354
TX-55DS352 / TX-55DSW354
MB110 Chassis
Warning
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product or products deal within this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are marked in the
Schematic Diagrams, Circuit Board Diagrams, Explorer Views and Replacement Parts List. It is essential that these
critical parts should be replaced with manufacturer◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
