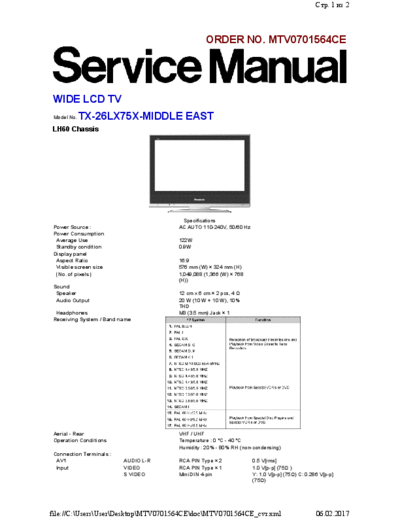

Image preview - the first page of the document



>> Download panasonic_tx-26lx75x_chassis_lh60 documenatation <<

Text preview - extract from the document

                                                                                             . 1  2



                                               ORDER NO. MTV0701564CE




WIDE LCD TV
Model No.   TX-26LX75X-MIDDLE EAST
LH60 Chassis




                                      Specifications
Power Source :                       AC AUTO 110-240V, 50/60 Hz
Power Consumption
 Average Use                         122W
 Standby condition                   0.9W
Display panel
 Aspect Ratio                        16:9
 Visible screen size                 576 mm (W)
