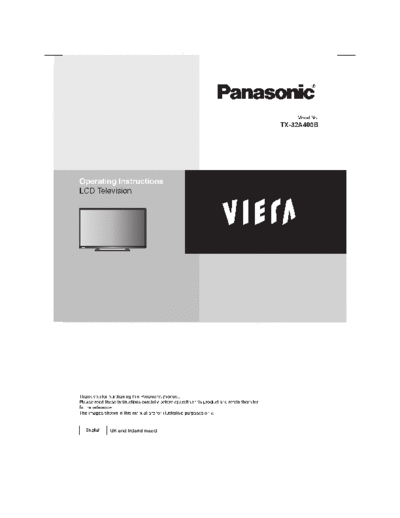

Image preview - the first page of the document



>> Download TZZ00001517A documenatation <<

Text preview - extract from the document

                                                                                                 Model No.
                                                                                             TX-32A400B




Operating Instructions
LCD Television




Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for
future reference.
The images shown in this manual are for illustrative purposes only.


   English     UK and Ireland model
Transport only in upright position
                                                             Contents
Panasonic does not guarantee operation and performance
of peripheral devices made by other manufacturers; and
we disclaim any liability or damage arising from operation   Be Sure to Read
and/ or performance from usage of such other maker's
peripheral devices.                                          Safety Precautions ................................................. 3
                                                             Maintenance ........................................................... 5

This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the AVC
Standard ("AVC Video") and/or (ii) decode AVC Video that     Quick Start Guide
was encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a video     Accessories / Options ........................................... 6
provider licensed to provide AVC Video. No license is        Basic Connection ................................................. 10
granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA,         Identifying Controls ............................................. 13
LLC. See http://www.mpegla.com.                              Auto Setup ............................................................ 14



Notice for DVB / Data broadcasting
This TV is designed to meet the standards (as of August,     Basic Features
2013) of digital services.
 Not all the features are available depending on the         Watching TV.......................................................... 15
  country, area, broadcaster, service provider and network
  environment.                                               How to Use Menu Functions ............................... 17
 The compatibility with future services is not guaranteed.
 Check the latest information on the available services at
  the following website.
  http://panasonic.jp/support/global/cs/tv/
                                                             Advanced features
                                                             Using Media Player .............................................. 23




                                                             Others
                                                             FAQs ......................................................................26
                                                             Specifications ....................................................... 27
                                                             Licence .................................................................. 31




2
        Be Sure to Read


        Safety Precautions
           Warning




                                                                                                                                         Safety Precautions
        To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
         Mains plug and lead
           This TV is designed to operate on AC 220-240 V, 50/60 Hz.
... 3      Insert the mains plug fully into the socket outlet.
           Ensure that the mains plug is easily accessible.
... 5      Remove the mains plug when cleaning the TV.
         Do not touch the mains plug                                             If you detect anything unusual, immediately switch
         with a wet hand.                                                        off the mains supply switch and remove the mains
                                                                                 plug.
                                                                                   AC 220-240 V
         Do not damage the mains                                                   50/60 Hz
... 6    lead.
. 10
