                     For Authorised Service Agents Only
                                                                                  Ref No:     903855391944928BR


                                                                                  Date:          09/11/2009
   TECHNICAL INFORMATION                                                                   Created by
                                                                                   Panasonic UK - Service Group

Document Category:           Knowledge Base


Subject:                     Lines on picture

Model(s) Affected:           TX-26LXD60          TX-32LXD60

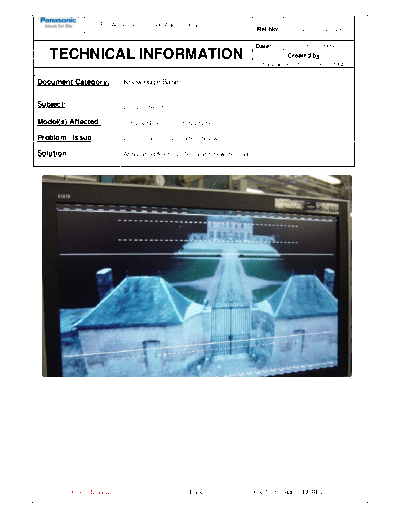

Problem / Issue              Lines on picture See picture below.

Solution:                    Apply liquid flux to IC1501 and reflow the solder.
