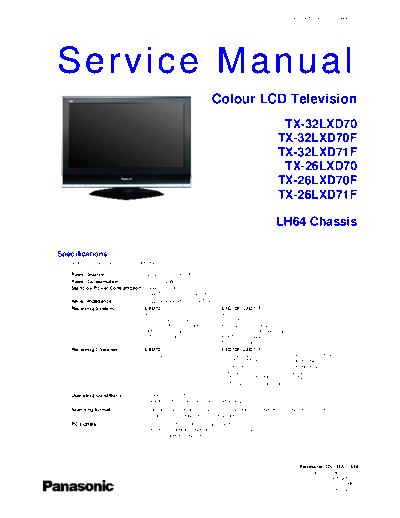

Image preview - the first page of the document
>> Download PCZ0702009CE_v2 documenatation <<Text preview - extract from the document ORDER No. PCZ0702009CE
ISSUE 2
Service Manual
Colour LCD Television
TX-32LXD70
TX-32LXD70F
TX-32LXD71F
TX-26LXD70
TX-26LXD70F
TX-26LXD71F
LH64 Chassis
Specifications
(Informations in brackets [ ] refers to model 26")
Power Source: 220-240V AC, 50/60Hz
Power Consumption 138W [102W]
Stand-by Power Consumption: 0.4W (TV ONLY)
19W (TV+DVB set to record)
Aerial Impedance: 75 unbalanced, Coaxial Type
Receiving System: LXD70 LXD70F, LXD71F
PAL-I, PAL-I/H, B/G, D/K,
PAL-525/60 (AV only) SECAM B/G, D/K, L/L'
DVB (via UHF aerial input) PAL-525/60 (AV only)
M.NTSC (AV only) DVB (via VHF/UHF aerial input)
NTSC (AV only) M.NTSC (AV only)
NTSC (AV only)
Receiving Channels: LXD70 LXD70F, LXD71F
UHF E21-E68 VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (Hyperband)
Operating Conditions: Temperature: 0
