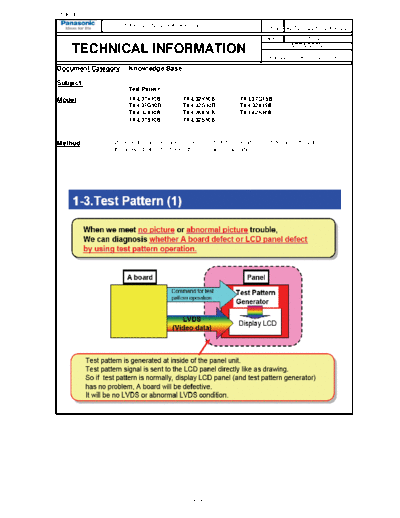

Image preview - the first page of the document
TEST_PATTERN_2009


>> Download TEST_PATTERN_2009 documenatation <<

Text preview - extract from the document
Confidential

                For Authorised Service Agents Only
                                                                              Ref No: ADTECH221092009REV1
                                                                              Date            21/09/2009

        TECHNICAL INFORMATION                                                             ADRAGGON

                                                                                 Panasonic UK - Service Group

  Document Category: Knowledge Base

  Subject:
                      Test Pattern

  Model               TX-L37V10B             TX-L32V10B             TX-L37G15B
                      TX-L37G10B             TX-L32G10B             TX-L32X15B
                      TX-L32X10B             TX-L26X10B             TX-L42S10B
                      TX-L37S10B             TX-L32S10B



  Method         2009 models as listed above have Test Pattern Generator circuitary built in the panel ,
                 this allows dealers to check if the LCD panel is operational .




                                                 1 of 2
Confidential

               For Authorised Service Agents Only
                                                      Ref No: ADTECH221092009REV1




                                             2 of 2
