Service Manuals, User Guides, Schematic Diagrams or docs for : panasonic LCD TX-L37S20B chassis GLP25 PCZ1004051CE
<< Back | HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

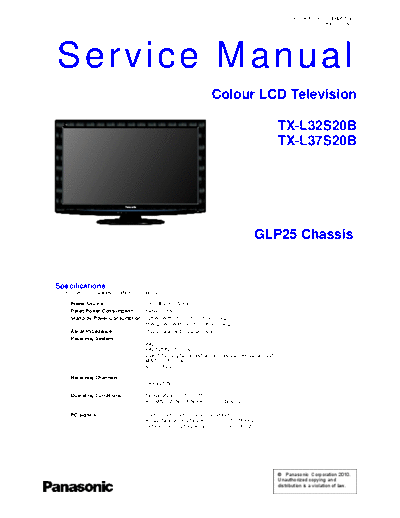

Image preview - the first page of the document
>> Download PCZ1004051CE documenatation <<
Text preview - extract from the document
ORDER No. PCZ1004051CE
REVISION 2
Service Manual
Colour LCD Television
TX-L32S20B
TX-L37S20B
GLP25 Chassis
Specifications
(Information in brackets [ ] refers to model 32")
Power Source: 220-240V AC, 50Hz
Rated Power Consumption: 143W [101W]
Stand-by Power Consumption: 0.25W (Without monitor out recording)
16W [21W] (With monitor out recording)
Aerial Impedance: 75 unbalanced, Coaxial Type
Receiving System:
PAL-I
PAL-525/60 (AV only)
DVB-T/T2 (Digital Terrestrial Services via UHF aerial input)
M.NTSC (AV only)
NTSC (AV only)
Receiving Channels:
UHF E21-68
Operating Conditions: Temperature: 0◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
