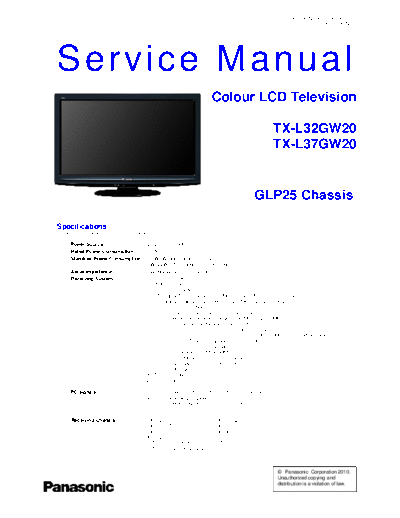

PCZ1005057CE


>> Download PCZ1005057CE documenatation <<

Text preview - extract from the document
                                                                                                            ORDER No. PCZ1005057CE
                                                                                                                        REVISION 2




Service Manual
                                                                        Colour LCD Television

                                                                                                    TX-L32GW20
                                                                                                    TX-L37GW20


                                                                                            GLP25 Chassis

Specifications
(Information in brackets [ ] refers to model 32")

      Power Source:               220-240V AC, 50Hz
      Rated Power Consumption:    140W [103W]
      Stand-by Power Consumption: 0.25W (Without monitor out recording)
                                  18W [22W] (With monitor out recording)
      Aerial Impedance:                   75 unbalanced, Coaxial Type
      Receiving System:                   PAL-I/H, B/G, D/K
                                          SECAM B/G, D/K, L/L'
                                          PAL-525/60 (AV only)
                                          DVB-T (Digital Terrestrial Services (MPEG2 and MPEG4-AVC(H.264))
                                          DVB-C (Digital cable services (MPEG2 and MPEG4-AVC(H.264))
