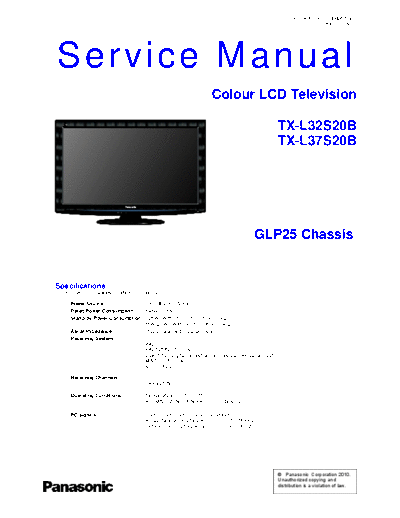

Image preview - the first page of the document
>> Download PCZ1004051CE documenatation <<Text preview - extract from the document ORDER No. PCZ1004051CE
REVISION 2
Service Manual
Colour LCD Television
TX-L32S20B
TX-L37S20B
GLP25 Chassis
Specifications
(Information in brackets [ ] refers to model 32")
Power Source: 220-240V AC, 50Hz
Rated Power Consumption: 143W [101W]
Stand-by Power Consumption: 0.25W (Without monitor out recording)
16W [21W] (With monitor out recording)
Aerial Impedance: 75 unbalanced, Coaxial Type
Receiving System:
PAL-I
PAL-525/60 (AV only)
DVB-T/T2 (Digital Terrestrial Services via UHF aerial input)
M.NTSC (AV only)
NTSC (AV only)
Receiving Channels:
UHF E21-68
Operating Conditions: Temperature: 0
