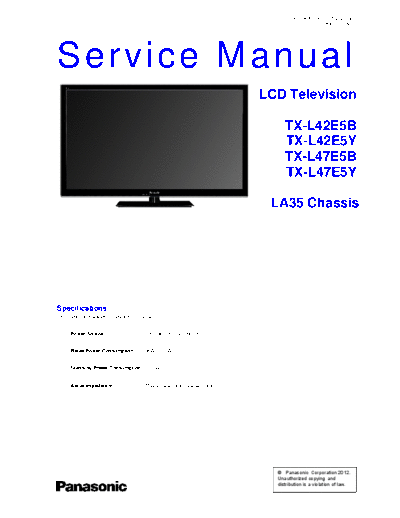

Image preview - the first page of the document
PCZ1202020CE


>> Download PCZ1202020CE documenatation <<

Text preview - extract from the document
                                                                               ORDER No. PCZ1202020CE
                                                                                           REVISION 2




Service Manual
                                                                        LCD Television

                                                                             TX-L42E5B
                                                                             TX-L42E5Y
                                                                             TX-L47E5B
                                                                             TX-L47E5Y

                                                                         LA35 Chassis




Specifications
Information in brackets [ ] refers to model 47"


      Power Source:                       220-240V AC, 50 / 60Hz


      Rated Power Consumption:            86W [118W]


      Stand-by Power Consumption: 0.15W


      Aerial Impedance:                   75 unbalanced, Coaxial Type
