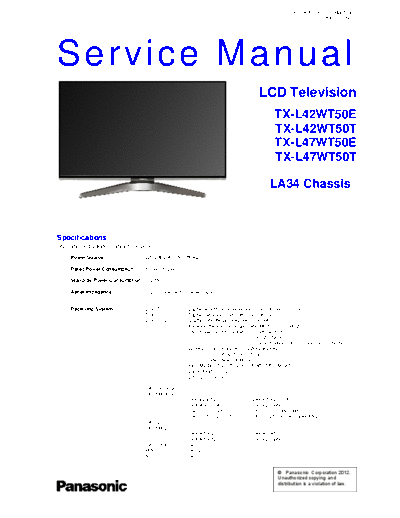

Image preview - the first page of the document
>> Download PCZ1204085CE documenatation <<
Text preview - extract from the document
ORDER No. PCZ1204085CE
REVISION 2
Service Manual
LCD Television
TX-L42WT50E
TX-L42WT50T
TX-L47WT50E
TX-L47WT50T
LA34 Chassis
Specifications
Information in brackets [ ] refers to model 47"
Power Source: 220-240V AC, 50 / 60Hz
Rated Power Consumption: 119W [132W]
Stand-by Power Consumption: 0.20W
Aerial Impedance: 75 unbalanced, Coaxial Type
Receiving System: DVB-T Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264))
DVB-C Digital cable services (MPEG2 and MPEG4-AVC(H.264))
DVB-S/S2 Digital satellite services (MPEG2 and MPEG4-AVC(H.264))
