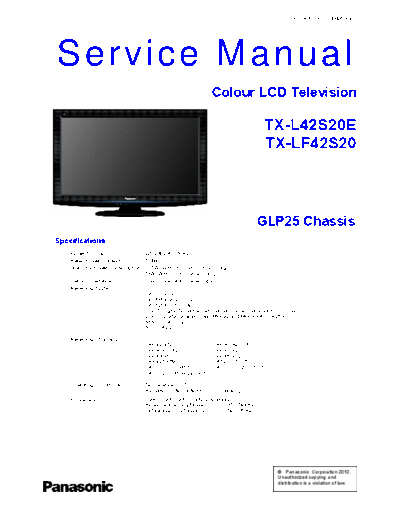

ORDER No. PCZ1004054CE
Service Manual
Colour LCD Television
TX-L42S20E
TX-LF42S20
GLP25 Chassis
Specifications
Power Source: 220-240V AC, 50Hz
Rated Power Consumption: 184W
Stand-by Power Consumption: 0.25W (Without monitor out recording)
13W (With monitor out recording)
Aerial Impedance: 75 unbalanced, Coaxial Type
Receiving System:
PAL-I/H, B/G, D/K
SECAM B/G, D/K, L/L'
PAL-525/60 (AV only)
DVB-T (Digital Terrestrial Services (MPEG2 and MPEG4-AVC(H.264))
DVB-C (Digital cable services (MPEG2 and MPEG4-AVC(H.264))
M.NTSC (AV only)
NTSC (AV only)
Receiving Channels:
VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (Hyperband)
Operating Conditions: Temperature: 0◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
