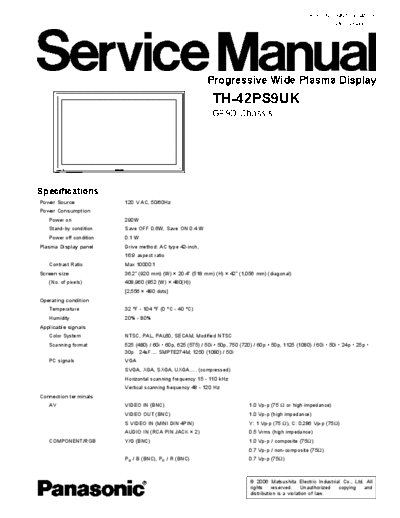

Image preview - the first page of the document

>> Download Panasonic_TH-42PS9UK_[SM] documenatation <<

Text preview - extract from the document
                                                                                                   ORDER NO. MNTC060479CE
                                                                                                            D10 Canada: B07

                                                           Progressive Wide Plasma Display
                                                             GP9D Chassis

Power Source             120 V AC, 50/60Hz
Power Consumption
   Power on              290W
   Stand-by condition    Save OFF 0.6W, Save ON 0.4 W
   Power off condition   0.1 W
Plasma Display panel     Drive method: AC type 42-inch,
                         16:9 aspect ratio
   Contrast Ratio        Max 10000:1
Screen size              36.2" (920 mm) (W)
