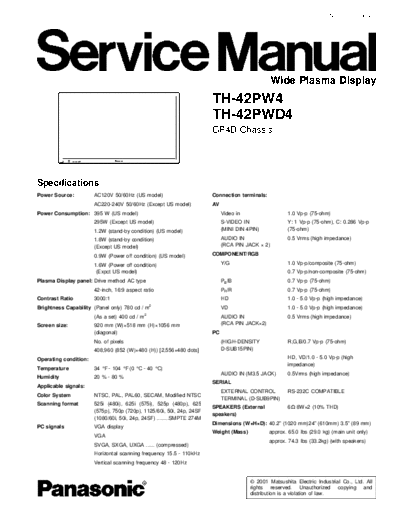

>> Download Panasonic_TH-42PW4_TH-42PWD4_[SM] documenatation <<Text preview - extract from the document ORDER NO. ITD0107005C0
D10
Wide Plasma Display
TH-42PW4
TH-42PWD4
GP4D Chassis
Specifications
Power Source: AC120V 50/60Hz (US model) Connection terminals:
AC220-240V 50/60Hz (Except US model) AV
Power Consumption: 395 W (US model) Video in 1.0 Vp-p (75-ohm)
295W (Except US model) S-VIDEO IN Y: 1 Vp-p (75-ohm), C: 0.286 Vp-p
1.2W (stand-by condition) (US model) (MINI DIN 4PIN) (75-ohm)
1.8W (stand-by condition) AUDIO IN 0.5 Vrms (high impedance)
(Except US model) (RCA PIN JACK
