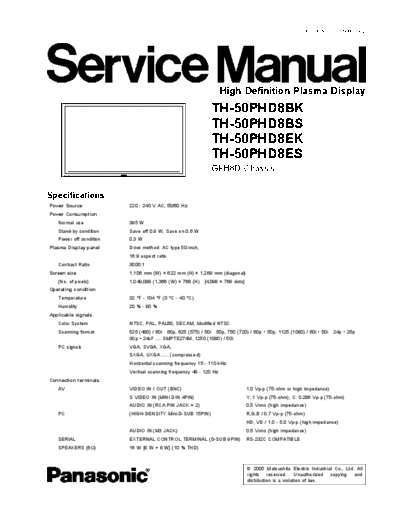

Image preview - the first page of the document



>> Download Panasonic_TH-50PHD8ES_TH-50PHD8BS_[SM] documenatation <<

Text preview - extract from the document

                                                                                                       ORDER NO.PCZ0509084C2




                                                                   High Definition Plasma Display
                                                             TH-50PHD8BK
                                                             TH-50PHD8BS
                                                             TH-50PHD8EK
                                                             TH-50PHD8ES
                                                             GPH8D Chassis


Specifications
Power Source             220 - 240 V AC, 50/60 Hz
Power Consumption
   Normal use            395 W
   Stand-by condition    Save off 0.8 W, Save on 0.6 W
   Power off condition   0.3 W
Plasma Display panel     Drive method: AC type 50-inch,
                         16:9 aspect ratio
   Contrast Ratio        3000:1
Screen size              1,106 mm (W)
