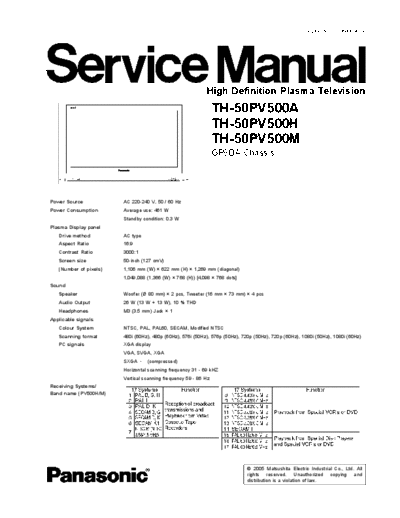

Image preview - the first page of the document



>> Download Panasonic_TH-50PV500M_TH-50PV500H_[SM] documenatation <<

Text preview - extract from the document

                                                                                                       ORDER NO.ITD0508045CE




                                                            High Definition Plasma Television
                                                                 TH-50PV500A
                                                                 TH-50PV500H
                                                                 TH-50PV500M
                                                                 GP8DA Chassis




Power Source            AC 220-240 V, 50 / 60 Hz
Power Consumption       Average use: 461 W
                        Standby condition: 0.3 W
Plasma Display panel
   Drive method         AC type
   Aspect Ratio         16:9
   Contrast Ratio       3000:1
   Screen size          50-inch (127 cmV)
   (Number of pixels)   1,106 mm (W)
