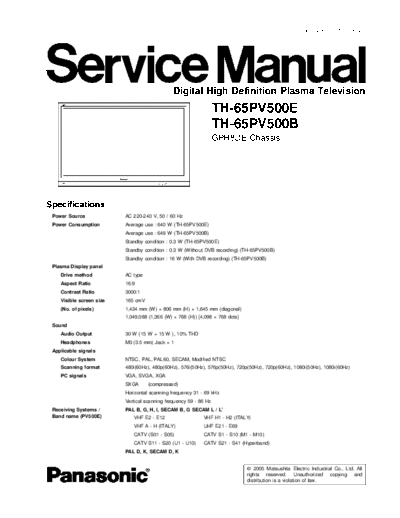

Image preview - the first page of the document



>> Download Panasonic_TH-65PV500E_TH-65PV500B_[SM] documenatation <<

Text preview - extract from the document

                                                                                                       ORDER NO.PCZ0510096C2




                                               Digital High Definition Plasma Television
                                                                   TH-65PV500E
                                                                   TH-65PV500B
                                                                   GPH8DE Chassis




Specifications
 Power Source             AC 220-240 V, 50 / 60 Hz
 Power Consumption        Average use : 640 W (TH-65PV500E)
                          Average use : 649 W (TH-65PV500B)
                          Standby condition : 0.3 W (TH-65PV500E)
                          Standby condition : 0.3 W (Without DVB recording) (TH-65PV500B)
                          Standby condition : 16 W (With DVB recording) (TH-65PV500B)
 Plasma Display panel
    Drive method          AC type
    Aspect Ratio          16:9
    Contrast Ratio        3000:1
    Visible screen size   165 cmV
    (No. of pixels)       1,434 mm (W)
