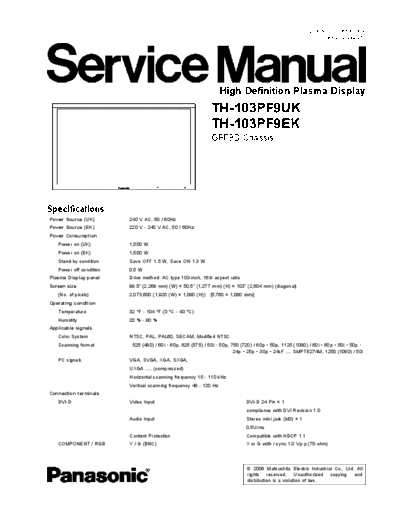

Image preview - the first page of the document



>> Download Panasonic_TH-103PF9EK_TH-103PF9UK_[SM] documenatation <<

Text preview - extract from the document

                                                                                                      ORDER NO. ITD0610074CE
                                                                                                              B34 Canada:D10




                                                                   High Definition Plasma Display
                                                              TH-103PF9UK
                                                              TH-103PF9EK
                                                              GPF9D Chassis




Specifications
Power Source (UK)        240 V AC, 50 / 60Hz
Power Source (EK)        220 V - 240 V AC, 50 / 60Hz
Power Consumption
   Power on (UK)         1,550 W
   Power on (EK)         1,500 W
   Stand-by condition    Save OFF 1.5 W, Save ON 1.3 W
   Power off condition   0.5 W
Plasma Display panel     Drive method: AC type 103-inch, 16:9 aspect ratio
Screen size              89.5" (2,269 mm) (W)
