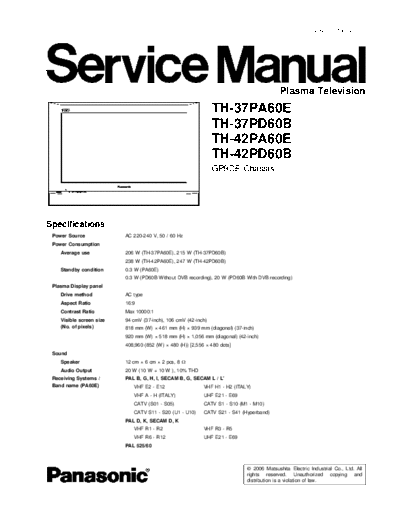

Image preview - the first page of the document
Panasonic_TH-37PD60B_TH-42PA60E_TH-42PD60B_TH-37PA60E_[SM]


>> Download Panasonic_TH-37PD60B_TH-42PA60E_TH-42PD60B_TH-37PA60E_[SM] documenatation <<

Text preview - extract from the document
                                                                                                    ORDER NO. PCZ0603011CE




                                                                                           Plasma Television
                                                                TH-37PA60E
                                                                TH-37PD60B
                                                                TH-42PA60E
                                                                TH-42PD60B
                                                                GP9DE Chassis




Specifications
 Power Source             AC 220-240 V, 50 / 60 Hz
 Power Consumption
    Average use           206 W (TH-37PA60E), 215 W (TH-37PD60B)
                          238 W (TH-42PA60E), 247 W (TH-42PD60B)
    Standby condition     0.3 W (PA60E)
                          0.3 W (PD60B Without DVB recording), 20 W (PD60B With DVB recording)
 Plasma Display panel
    Drive method          AC type
    Aspect Ratio          16:9
    Contrast Ratio        Max 10000:1
    Visible screen size   94 cmV (37-inch), 106 cmV (42-inch)
    (No. of pixels)       818 mm (W)
