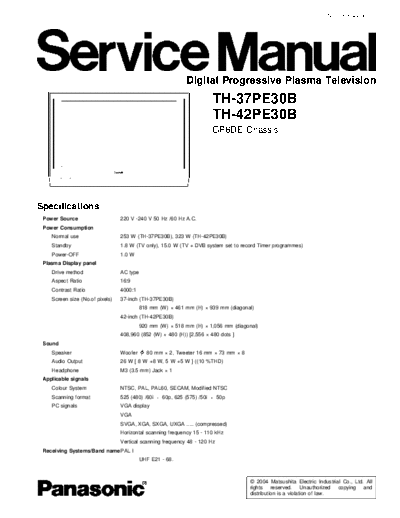

Image preview - the first page of the document



>> Download Panasonic_TH-37PE30B_TH-42PE30B_[SM] documenatation <<

Text preview - extract from the document

                                                                                                            ORDER NO. EXP0403007C2




                                                            Digital Progressive Plasma Television
                                                                        TH-37PE30B
                                                                        TH-42PE30B
                                                                        GP6DE Chassis




Specifications
 Power Source                    220 V -240 V 50 Hz /60 Hz A.C.
 Power Consumption
    Normal use                   253 W (TH-37PE30B), 323 W (TH-42PE30B)
    Standby                      1.8 W (TV only), 15.0 W (TV + DVB system set to record Timer programmes)
    Power-OFF                    1.0 W
 Plasma Display panel
    Drive method                 AC type
    Aspect Ratio                 16:9
    Contrast Ratio               4000:1
    Screen size (No.of pixels)   37-inch (TH-37PE30B)
                                          818 mm (W)
