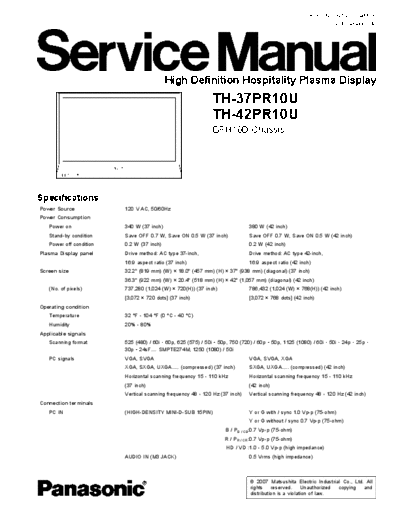

Image preview - the first page of the document



>> Download Panasonic_TH-37PR10U_TH-42PR10U_[SM] documenatation <<

Text preview - extract from the document

                                                                                                       ORDER NO. MTNC070411CE
                                                                                                               D34 Canada: D10




                                           High Definition Hospitality Plasma Display
                                                             TH-37PR10U
                                                             TH-42PR10U
                                                             GPH10D Chassis




Specifications
Power Source             120 V AC, 50/60Hz
Power Consumption
   Power on              340 W (37 inch)                                     380 W (42 inch)
   Stand-by condition    Save OFF 0.7 W, Save ON 0.5 W (37 inch)             Save OFF 0.7 W, Save ON 0.5 W (42 inch)
   Power off condition   0.2 W (37 inch)                                     0.2 W (42 inch)
Plasma Display panel     Drive method: AC type 37-inch,                      Drive method: AC type 42-inch,
                         16:9 aspect ratio (37 inch)                         16:9 aspect ratio (42 inch)
Screen size              32.2" (819 mm) (W)
