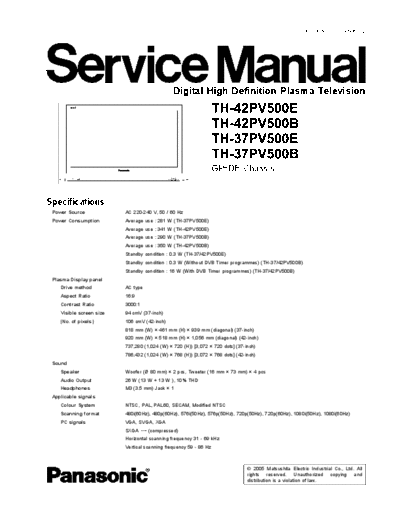

Image preview - the first page of the document



>> Download Panasonic_TH-37PV500B_TH-42PV500B_TH-37PV500E_TH-42PV500E_[SM] documenatation <<

Text preview - extract from the document

                                                                                                        ORDER NO.PCZ0505057C2




                                               Digital High Definition Plasma Television




                                                                   GP8DE Chassis


Specifications
 Power Source             AC 220-240 V, 50 / 60 Hz
 Power Consumption        Average use : 281 W (TH-37PV500E)
                          Average use : 341 W (TH-42PV500E)
                          Average use : 290 W (TH-37PV500B)
                          Average use : 350 W (TH-42PV500B)
                          Standby condition : 0.3 W (TH-37/42PV500E)
                          Standby condition : 0.3 W (Without DVB Timer programmes) (TH-37/42PV500B)
                          Standby condition : 16 W (With DVB Timer programmes) (TH-37/42PV500B)
 Plasma Display panel
    Drive method          AC type
    Aspect Ratio          16:9
    Contrast Ratio        3000:1
    Visible screen size   94 cmV (37-inch)
    (No. of pixels)       106 cmV (42-inch)
                          818 mm (W)
