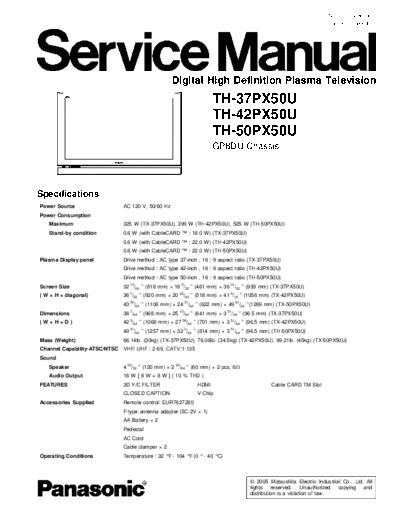

Image preview - the first page of the document



>> Download Panasonic_TH-37PX50U_TH-42PX50U_TH-50PX50U_[SM] documenatation <<

Text preview - extract from the document

                                                                                                                ORDER NO. ITD0503013CE
                                                                                                                       B19 Canada: B07




                                                   Digital High Definition Plasma Television
                                                                      TH-37PX50U
                                                                      TH-42PX50U
                                                                      TH-50PX50U
                                                                      GP8DU Chassis




Specifications
Power Source                  AC 120 V, 50/60 Hz
Power Consumption
   Maximum                    325 W (TX-37PX50U), 399 W (TH-42PX50U), 525 W (TH-50PX50U)
   Stand-by condition         0.6 W (with CableCARD TM : 18.0 W) (TX-37PX50U)
                              0.6 W (with CableCARD TM : 22.0 W) (TH-42PX50U)
                              0.6 W (with CableCARD TM : 22.0 W) (TH-50PX50U)
Plasma Display panel          Drive method : AC type 37-inch , 16 : 9 aspect ratio (TX-37PX50U)
                              Drive method : AC type 42-inch , 16 : 9 aspect ratio (TH-42PX50U)
                              Drive method : AC type 50-inch , 16 : 9 aspect ratio (TH-50PX50U)
Screen Size                   32 13/64 '' (818 mm)
