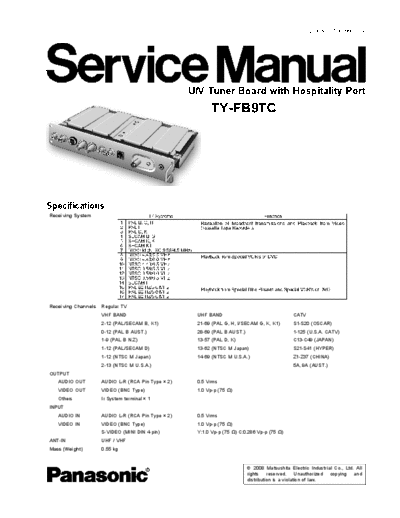

Image preview - the first page of the document
>> Download Panasonic_TY-FB9TC_[SM] documenatation <<Text preview - extract from the document ORDER NO. ITD0805030CE
U/V Tuner Board with Hospitality Port
TY-FB9TC
Specifications
Receiving System
Receiving Channels Regular TV
VHF BAND UHF BAND CATV
2-12 (PAL/SECAM B, K1) 21-69 (PAL G, H, I/SECAM G, K, K1) S1-S20 (OSCAR)
0-12 (PAL B AUST.) 28-69 (PAL B AUST.) 1-125 (U.S.A. CATV)
1-9 (PAL B N.Z) 13-57 (PAL D, K) C13-C49 (JAPAN)
1-12 (PAL/SECAM D) 13-62 (NTSC M Japan) S21-S41 (HYPER)
1-12 (NTSC M Japan) 14-69 (NTSC M U.S.A.) Z1-Z37 (CHINA)
2-13 (NTSC M U.S.A.) 5A, 9A (AUST.)
OUTPUT
AUDIO OUT AUDIO L-R (RCA Pin Type
