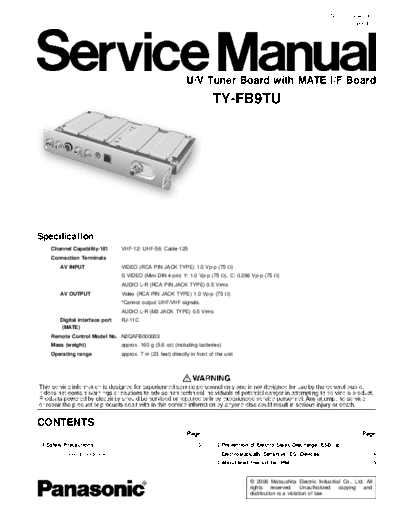

Image preview - the first page of the document



>> Download Panasonic_TY-FB9TU_[SM] documenatation <<

Text preview - extract from the document

                                                                                                                    ORDER NO.ITD0604018CE
                                                                                                                           D10 Canada: B07




                                                              U/V Tuner Board with MATE I/F Board
                                                                          TY-FB9TU




Specification
    Channel Capability-181       VHF-12: UHF-56: Cable-125
    Connection Terminals
        AV INPUT                 VIDEO (RCA PIN JACK TYPE) 1.0 Vp-p (75 W)
                                 S VIDEO (Mini DIN 4-pin) Y: 1.0 Vp-p (75 W), C: 0.286 Vp-p (75 W)
                                 AUDIO L-R (RCA PIN JACK TYPE) 0.5 Vrms
        AV OUTPUT                Video (RCA PIN JACK TYPE) 1.0 Vp-p (75 W)
                                 *Cannot output UHF/VHF signals.
                                 AUDIO L-R (M3 JACK TYPE) 0.5 Vrms
        Digital interface port   RJ-11C
        (MATE)
    Remote Control Model No. N2QAFB000003
    Mass (weight)                approx. 160 g (5.6 oz) (including batteries)
    Operating range              approx. 7 m (23 feet) directly in front of the unit




CONTENTS
                                                               Page                                                                      Page
 1 Safety Precautions                                               3       2 Prevention of Electro Static Discharge (ESD) to
     1.1. General Guidelines                                        3           Electrostatically Sensitive (ES) Devices                         4
                                                                            3 About lead free solder (PbF)                                       5
