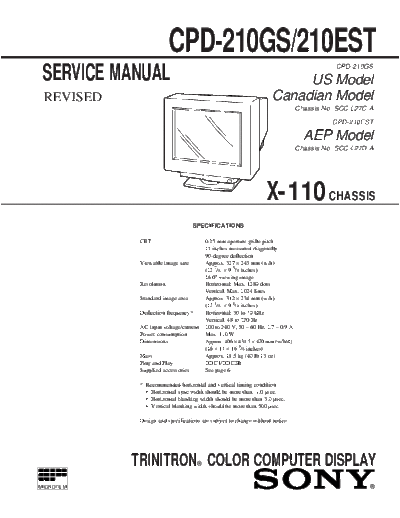

                          CPD-210GS/210EST
 SERVICE MANUAL                                                           US Model
                                                                                            CPD-210GS



 REVISED                                                             Canadian Model
                                                                                 Chassis No. SCC-L27C-A

                                                                                           CPD-210EST

                                                                                   AEP Model
                                                                                 Chassis No. SCC-L27D-A




                                                                  X-110 CHASSIS
                                    SPECIFICATIONS

             CRT                         0.25 mm aperture grille pitch
                                         17 inches measured diagonally
                                         90-degree deflection
             Viewable image size         Approx. 327
