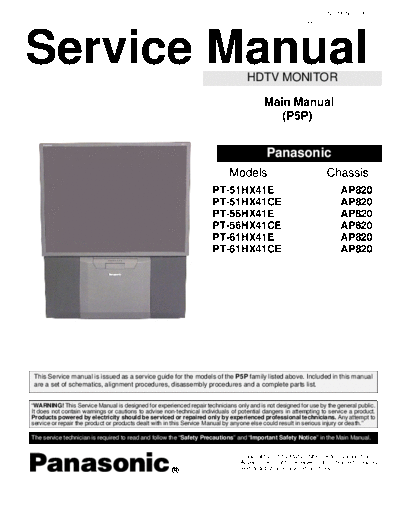

Image preview - the first page of the document
>> Download pt51hx41e_pt51hx41ce_pt56hx41e_pt56hx41ce_pt61hx41e_pt61hx41ce_chassi_ap820_ms documenatation <<Text preview - extract from the document ORDER NO. MTNC010417C1
B2
Service Manual HDTV MONITOR
Main Manual
(P5P)
Panasonic
Models Chassis
PT-51HX41E AP820
PT-51HX41CE AP820
PT-56HX41E AP820
PT-56HX41CE AP820
PT-61HX41E AP820
PT-61HX41CE AP820
This Service manual is issued as a service guide for the models of the P5P family listed above. Included in this manual
are a set of schematics, alignment procedures, disassembly procedures and a complete parts list.
"WARNING! This Service Manual is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this Service Manual by anyone else could result in serious injury or death."
The service technician is required to read and follow the "Safety Precautions" and "Important Safety Notice" in the Main Manual.
Copyright 2001 by Matsushita Electric Corporation of
America. All rights reserved. Unauthorized copying
and distribution is a violation of law.
