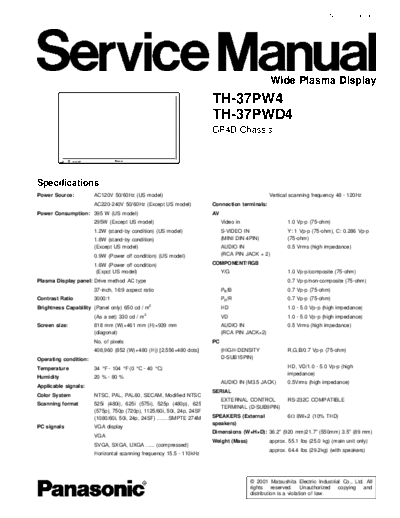

Image preview - the first page of the document
GP4D TH-37PW4 TH-37PWD4


>> Download GP4D TH-37PW4 TH-37PWD4 documenatation <<

Text preview - extract from the document
                                                                                                                ORDER NO. ITD0109010C0
                                                                                                                                   D10




                                                                                                 Wide Plasma Display
                                                                       TH-37PW4
                                                                       TH-37PWD4
                                                                       GP4D Chassis




Specifications
Power Source:          AC120V 50/60Hz (US model)                                               Vertical scanning frequency 48 - 120Hz
                       AC220-240V 50/60Hz (Except US model)            Connection terminals:
Power Consumption: 395 W (US model)                                    AV
                       295W (Except US model)                               Video in                   1.0 Vp-p (75-ohm)
                       1.2W (stand-by condition) (US model)                 S-VIDEO IN                 Y: 1 Vp-p (75-ohm), C: 0.286 Vp-p
                       1.8W (stand-by condition)                            (MINI DIN 4PIN)            (75-ohm)
                       (Except US model)                                    AUDIO IN                   0.5 Vrms (high impedance)
                       0.9W (Power off condition) (US model)                (RCA PIN JACK
