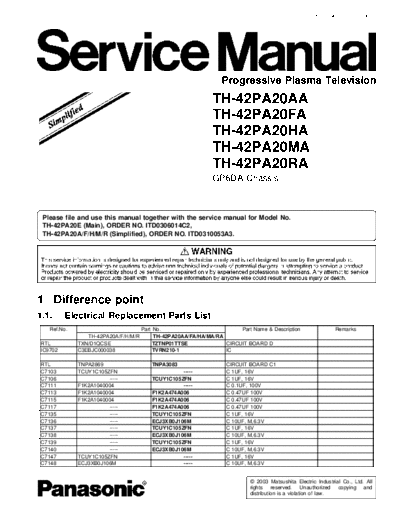

Image preview - the first page of the document



>> Download GP6DA TH-42PA20AA TH-42PA20FA TH-42PA20HA TH-42PA20MA TH-42PA20RA documenatation <<

Text preview - extract from the document

                                                                                                   ORDER NO. ITD0312108A3




                                                                 Progressive Plasma Television
                                                              TH-42PA20AA
                                                              TH-42PA20FA
                                                              TH-42PA20HA
                                                              TH-42PA20MA
                                                              TH-42PA20RA
                                                              GP6DA Chassis



 Please file and use this manual together with the service manual for Model No.
 TH-42PA20E (Main), ORDER NO. ITD0306014C2,
 TH-42PA20A/F/H/M/R (Simplified), ORDER NO. ITD0310053A3.




1 Difference point
1.1.     Electrical Replacement Parts List
   Ref.No.                           Part No.                          Part Name & Description                Remarks
                TH-42PA20A/F/H/M/R        TH-42PA20AA/FA/HA/MA/RA
RTL          TXN/D1QCSE                   TZTNP01TTSE             CIRCUIT BOARD D
IC9702       C3EBJC000038                 TVRN210-1               IC

RTL          TNPA2869                   TNPA3083                   CIRCUIT BOARD C1
C7103        TCUY1C105ZFN                         -----            C 1UF, 16V
C7106                  -----            TCUY1C105ZFN               C 1UF, 16V
C7111        F1K2A1040004                         -----            C 0.1UF, 100V
C7113        F1K2A1040004               F1K2A474A006               C 0.47UF 100V
C7115        F1K2A1040004               F1K2A474A006               C 0.47UF 100V
C7117                  -----            F1K2A474A006               C 0.47UF 100V
C7135                  -----            TCUY1C105ZFN               C 1UF, 16V
C7136                  -----            ECJ3XB0J106M               C 10UF, M,6.3V
C7137                  -----            TCUY1C105ZFN               C 1UF, 16V
C7138                  -----            ECJ3XB0J106M               C 10UF, M,6.3V
C7139                  -----            TCUY1C105ZFN               C 1UF, 16V
C7140                  -----            ECJ3XB0J106M               C 10UF, M,6.3V
C7147        TCUY1C105ZFN                         -----            C 1UF, 16V
C7148        ECJ3XB0J106M                         -----            C 10UF, M,6.3V
