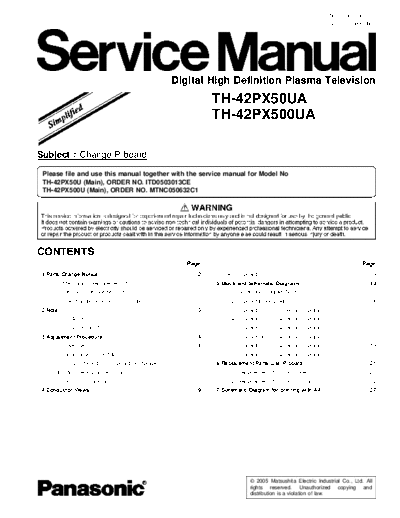

Image preview - the first page of the document



>> Download GP8DU TH-42PX50UA TH-42PX500UA documenatation <<

Text preview - extract from the document

                                                                                                     ORDER NO. ITD0510061SE
                                                                                                            B19 Canada : B07




                                                   Digital High Definition Plasma Television
                                                             TH-42PX50UA
                                                             TH-42PX500UA

Subject : Change P-board
 Please file and use this manual together with the service manual for Model No
 TH-42PX50U (Main), ORDER NO. ITD0503013CE
 TH-42PX500U (Main), ORDER NO. MTNC050632C1




CONTENTS
                                                      Page                                                              Page
1 Parts Change Notice                                    2       4.1. P-Board                                                   9
    1.1. Mechanical Replacement Parts List               2   5 Block and Schematic Diagrams                                 13
    1.2. Electrical Replacement Parts List               2       5.1. Schematic Diagram Notes                               13
    1.3. Interchangeability for CIRCUIT BOARD P          2       5.2. P-Board Block Diagram                                 14
2 Note                                                   3       5.3. P-Board (1 of 6) Schematic Diagram                    15
    2.1. TH-42PX50UA                                     3       5.4. P-Board (2 of 6) Schematic Diagram                    16
    2.2. TH-42PX500UA                                    3       5.5. P-Board (3 of 6) Schematic Diagram                    17
3 Adjustment Procedure                                   4       5.6. P-Board (4 of 6) Schematic Diagram                    18
    3.1. Driver Set-up                                   4       5.7. P-Board (5 of 6) Schematic Diagram                    19
    3.2. Initialization Pulse Adjust                     5       5.8. P-Board (6 of 6) Schematic Diagram                    20
    3.3. P.C.B. (Printed Circuit Board) exchange         6   6 Replacement Parts List (P-board)                             21
    3.4. Adjustment Volume Location                      6       6.1. Replacement Parts List Notes                          21
    3.5. Test Point Location                             7       6.2. Replacement Parts List (P-board)                      22
4 Conductor Views                                        9   7 Schematic Diagram for printing with A4                       27
