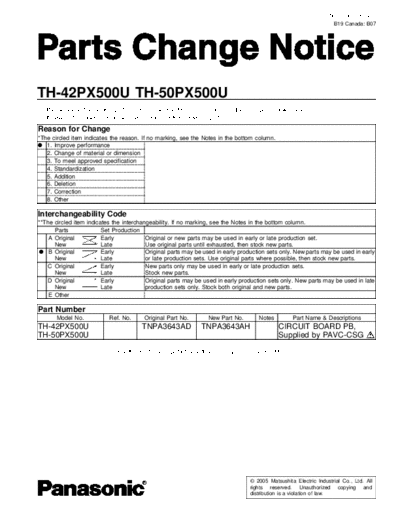

Image preview - the first page of the document



>> Download GP8DU TH-50PX500U TH-42PX500U Parts Change Notice documenatation <<

Text preview - extract from the document

                                                                                                         ORDER NO. ITD0512085PE
                                                                                                                B19 Canada: B07




TH-42PX500U TH-50PX500U
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
   If new part numbers are shown, be sure to use then ordering parts.

Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meel approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
      Parts              Set Production
    A Original           Early            Original or new parts may be used in early or late production set.
      New                Late             Use original parts until exhausted, then stock new parts.
    B Original           Early            Original parts may be used in early production sets only. New parts may be used in early
      New                Late             or late production sets. Use original parts where possible, then stock new parts.
    C Original           Early            New parts only may be used in early or late production sets.
      New                Late             Stock new parts.
    D Original           Early            Original parts may be used in early production sets only. New parts may be used in late
      New                Late             production sets only. Stock both original and new parts.
    E Other

Part Number
       Model No.           Ref. No.      Original Part No.       New Part No.        Notes        Part Name & Descriptions
TH-42PX500U                             TNPA3643AD             TNPA3643AH                    CIRCUIT BOARD PB,
TH-50PX500U                                                                                  Supplied by PAVC-CSG

                              File this Parts Change Notice with your copy of the Service Manual.
