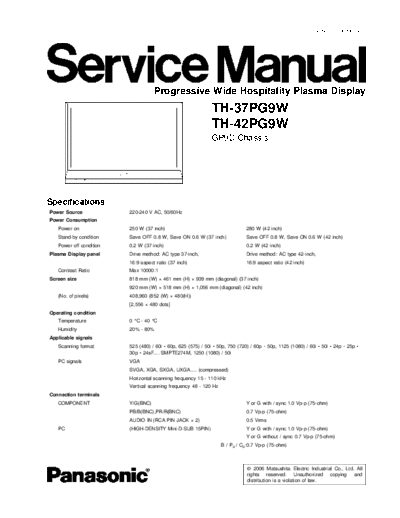

Image preview - the first page of the document



>> Download GP9D TH-37PG9W TH-42PG9W documenatation <<

Text preview - extract from the document

                                                                                                        ORDER NO. ITD0609073CE




                                    Progressive Wide Hospitality Plasma Display
                                                             TH-37PG9W
                                                             TH-42PG9W
                                                             GP9D Chassis




Specifications
Power Source             220-240 V AC, 50/60Hz
Power Consumption
   Power on              250 W (37 inch)                                      280 W (42 inch)
   Stand-by condition    Save OFF 0.8 W, Save ON 0.6 W (37 inch)              Save OFF 0.8 W, Save ON 0.6 W (42 inch)
   Power off condition   0.2 W (37 inch)                                      0.2 W (42 inch)
Plasma Display panel     Drive method: AC type 37-inch,                       Drive method: AC type 42-inch,
                         16:9 aspect ratio (37 inch)                          16:9 aspect ratio (42 inch)
   Contrast Ratio        Max 10000:1
Screen size              818 mm (W)
