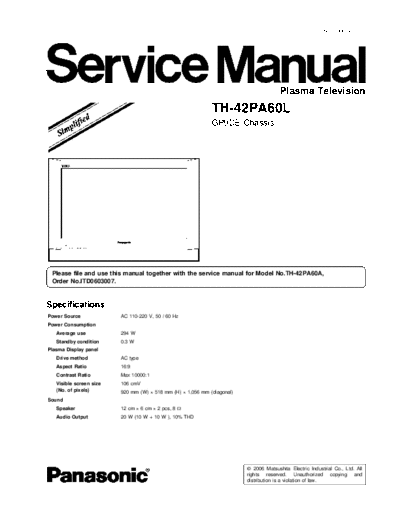

Image preview - the first page of the document



>> Download GP9DE TH-42PA60L documenatation <<

Text preview - extract from the document

                                                                                                  ORDER NO.ITD0604013AE




                                                                                       Plasma Television
                                                             TH-42PA60L
                                                             GP9DE Chassis




 Please file and use this manual together with the service manual for Model No.TH-42PA60A,
 Order No.ITD0603007.


Specifications
Power Source             AC 110-220 V, 50 / 60 Hz
Power Consumption
   Average use           294 W
   Standby condition     0.3 W
Plasma Display panel
   Drive method          AC type
   Aspect Ratio          16:9
   Contrast Ratio        Max 10000:1
   Visible screen size   106 cmV
   (No. of pixels)       920 mm (W)
