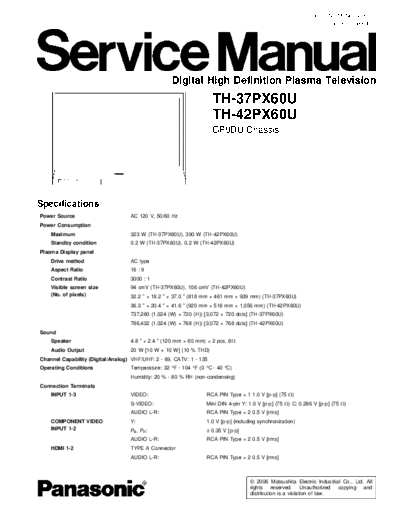

Image preview - the first page of the document



>> Download GP9DU TH-37PX60U TH-42PX60U documenatation <<

Text preview - extract from the document

                                                                                                             ORDER NO.MTNC060263C1
                                                                                                                    B19 Canada: B05




                                                   Digital High Definition Plasma Television
                                                                     TH-37PX60U
                                                                     TH-42PX60U
                                                                     GP9DU Chassis




Specifications
Power Source                       AC 120 V, 50/60 Hz
Power Consumption
    Maximum                        323 W (TH-37PX60U), 390 W (TH-42PX60U)
    Standby condition              0.2 W (TH-37PX60U), 0.2 W (TH-42PX60U)
Plasma Display panel
    Drive method                   AC type
    Aspect Ratio                   16 : 9
    Contrast Ratio                 3000 : 1
    Visible screen size            94 cmV (TH-37PX60U), 106 cmV (TH-42PX60U)
    (No. of pixels)                32.2 "
