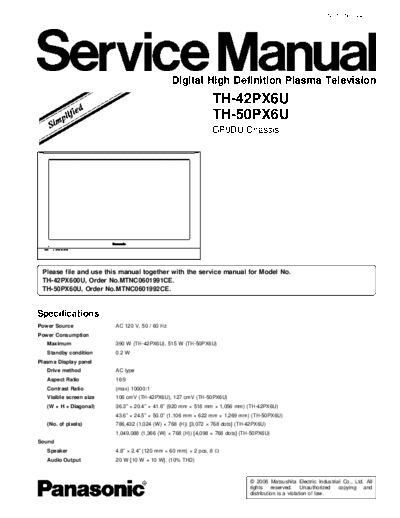

                                                                                                      ORDER NO.MTNC060480AE




                                                Digital High Definition Plasma Television
                                                               TH-42PX6U
                                                               TH-50PX6U
                                                               GP9DU Chassis




 Please file and use this manual together with the service manual for Model No.
 TH-42PX600U, Order No.MTNC0601991CE.
 TH-50PX60U, Order No.MTNC0601992CE.


Specifications
Power Source             AC 120 V, 50 / 60 Hz
Power Consumption
   Maximum               390 W (TH-42PX6U), 515 W (TH-50PX6U)
   Standby condition     0.2 W
Plasma Display panel
   Drive method          AC type
   Aspect Ratio          16:9
   Contrast Ratio        (max) 10000:1
   Visible screen size   106 cmV (TH-42PX6U), 127 cmV (TH-50PX6U)
