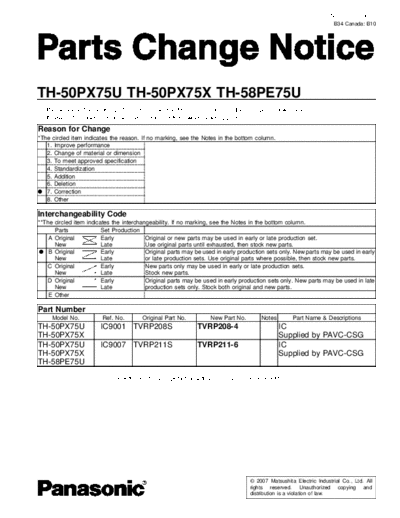

Image preview - the first page of the document



>> Download GP10DHU TH-50PX75U TH-50PX75X TH-58PE75U Parts Change Notice documenatation <<

Text preview - extract from the document

                                                                                                           ORDER NO.ITD0711092PE
                                                                                                                  B34 Canada: B10




TH-50PX75U TH-50PX75X TH-58PE75U
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
   If new part numbers are shown, be sure to use them when ordering parts.

Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
      Parts              Set Production
    A Original           Early            Original or new parts may be used in early or late production set.
      New                Late             Use original parts until exhausted, then stock new parts.
    B Original           Early            Original parts may be used in early production sets only. New parts may be used in early
      New                Late             or late production sets. Use original parts where possible, then stock new parts.
    C Original           Early            New parts only may be used in early or late production sets.
      New                Late             Stock new parts.
    D Original           Early            Original parts may be used in early production sets only. New parts may be used in late
      New                Late             production sets only. Stock both original and new parts.
    E Other

Part Number
     Model No.          Ref. No.        Original Part No.         New Part No.        Notes       Part Name & Descriptions
TH-50PX75U              IC9001 TVRP208S                      TVRP208-4                        IC
TH-50PX75X                                                                                    Supplied by PAVC-CSG
TH-50PX75U              IC9007 TVRP211S                      TVRP211-6                        IC
TH-50PX75X                                                                                    Supplied by PAVC-CSG
TH-58PE75U

                              File this Parts Change Notice with your copy of the Service Manual.
