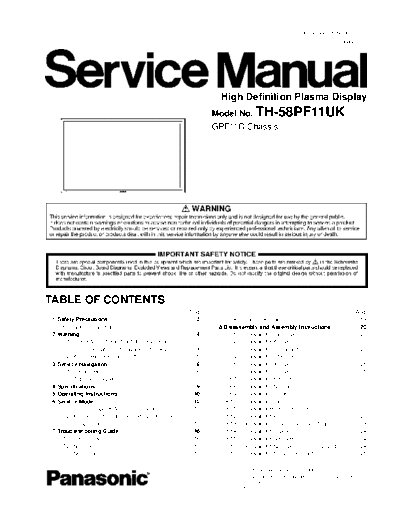

Image preview - the first page of the document
>> Download GPF11D TH-58PF11UK documenatation <<
Text preview - extract from the document
Order Number MTNC081070CE
B34 Canada: D10
High Definition Plasma Display
Model No. TH-58PF11UK
GPF11D Chassis
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 7.4. Local screen failure-------------------------------------- 19
1.1. General Guidelines---------------------------------------- 3 8 Disassembly and Assembly Instructions--------------- 20
2 Warning -------------------------------------------------------------- 4 8.1. Removal of Rear Cover -------------------------------- 20
2.1. Prevention of Electrostatic Discharge (ESD) 8.2. Removal of HA-Board----------------------------------- 20
to Electrostatically Sensitive (ES) Devices---------- 4 8.3. Removal of HHH-Board -------------------------------- 20
2.2. About lead free solder (PbF)---------------------------- 5 8.4. Removal of Slot Block ---------------------------------- 20
3 Service Navigation ----------------------------------------------- 6 8.5. Removal of HX-Board----------------------------------- 21
3.1. Service Hint ------------------------------------------------- 6 8.6. Removal of DS-Board----------------------------------- 21
3.2. Applicable signals ----------------------------------------- 7 8.7. Removal of PB-Board----------------------------------- 21
4 Specifications ----------------------------------------------------- 9 8.8. Removal of DN-Board ---------------------------------- 22
5 Operating Instructions-----------------------------------------10 8.9. Removal of D-Board------------------------------------- 22
6 Service Mode -----------------------------------------------------12 8.10. Removal of P-Board------------------------------------- 22
6.1. CAT (Computer Aided Test) mode -------------------12 8.11. Removal of H3-Board (L), (R)------------------------- 22
6.2. IIC mode structure (following items value is 8.12. Removal of Fan------------------------------------------- 23
sample data) -----------------------------------------------15 8.13. Removal of SU-Board and SD-Board--------------- 23
7 Troubleshooting Guide ----------------------------------------16 8.14. Removal of SC-Board----------------------------------- 24
7.1. Self Check--------------------------------------------------16 8.15. Removal of SS-Board----------------------------------- 24
7.2. No Power ---------------------------------------------------18 8.16. Removal of SS2-Board and SS3-Board------------ 24
7.3. No Picture --------------------------------------------------18 8.17. Removal of C1, C2, C3-Board ------------------------ 25
