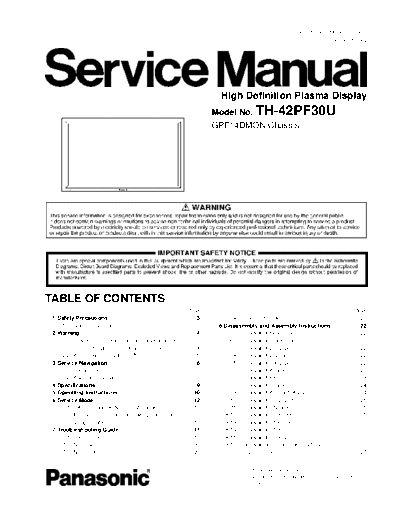

Image preview - the first page of the document
>> Download GPF14DMON TH-42PF30U documenatation <<
Text preview - extract from the document
Order Number MTNC110669CE
B34 Canada: B62
High Definition Plasma Display
Model No. TH-42PF30U
GPF14DMON Chassis
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 7.4. Local screen failure-------------------------------------- 21
1.1. General Guidelines---------------------------------------- 3 8 Disassembly and Assembly Instructions--------------- 22
2 Warning -------------------------------------------------------------- 4 8.1. Removal of Rear Cover -------------------------------- 22
2.1. Prevention of Electrostatic Discharge (ESD) 8.2. Removal of Slot Block ---------------------------------- 22
to Electrostatically Sensitive (ES) Devices---------- 4 8.3. Removal of DS-Board----------------------------------- 22
2.2. About lead free solder (PbF)---------------------------- 5 8.4. Removal of D-Board------------------------------------- 22
3 Service Navigation ----------------------------------------------- 6 8.5. Removal of HX-Board----------------------------------- 22
3.1. Service Hint ------------------------------------------------- 6 8.6. Removal of A-Board------------------------------------- 23
3.2. Applicable signals ----------------------------------------- 7 8.7. Removal of Fan------------------------------------------- 23
4 Specifications ----------------------------------------------------- 9 8.8. Removal of P-Board------------------------------------- 24
5 Operating Instructions-----------------------------------------10 8.9. Removal of AC Inlet Assy ----------------------------- 24
6 Service Mode -----------------------------------------------------12 8.10. Removal of H3-Board ----------------------------------- 25
6.1. CAT (Computer Aided Test) mode -------------------12 8.11. Removal of SN-Board----------------------------------- 25
6.2. IIC mode structure (following items value is 8.12. Removal of SS-Board----------------------------------- 25
sample data) -----------------------------------------------16 8.13. Removal of S1-Board ----------------------------------- 26
7 Troubleshooting Guide ----------------------------------------17 8.14. Removal of C1-Board ----------------------------------- 26
7.1. Self Check--------------------------------------------------17 8.15. Removal of C2-Board ----------------------------------- 26
7.2. No Power ---------------------------------------------------20 8.16. Removal of Front Glass, V1, V2-Board and
7.3. No Picture --------------------------------------------------20 Cabinet Assy ---------------------------------------------- 27
