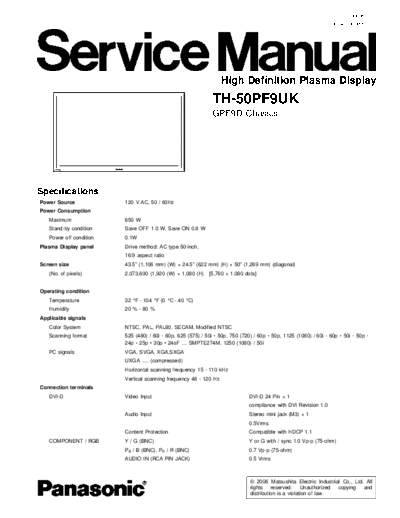

Image preview - the first page of the document



>> Download GPF9D TH-50PF9UK documenatation <<

Text preview - extract from the document

                                                                                                    ORDER NO. ITD0610069CE
                                                                                                              B34 Canada: D10




                                                                   High Definition Plasma Display
                                                             TH-50PF9UK
                                                             GPF9D Chassis




Specifications
Power Source             120 V AC, 50 / 60Hz
Power Consumption
   Maximum               650 W
   Stand-by condition    Save OFF 1.0 W, Save ON 0.8 W
   Power off condition   0.1W
Plasma Display panel     Drive method: AC type 50-inch,
                         16:9 aspect ratio
Screen size              43.5" (1,106 mm) (W)
