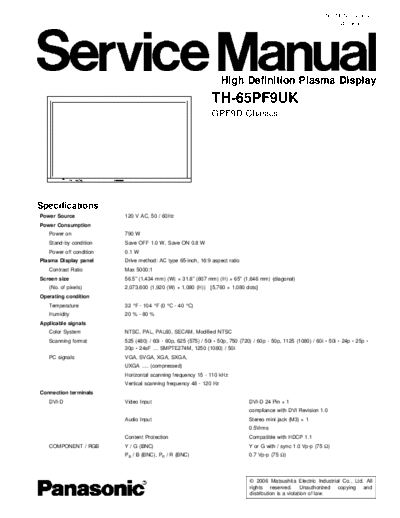

                                                                                                     ORDER NO. MTNC060805CE
                                                                                                               B34 Canada:D10




                                                                   High Definition Plasma Display
                                                             TH-65PF9UK
                                                             GPF9D Chassis




Specifications
Power Source             120 V AC, 50 / 60Hz
Power Consumption
   Power on              790 W
   Stand-by condition    Save OFF 1.0 W, Save ON 0.8 W
   Power off condition   0.1 W
Plasma Display panel     Drive method: AC type 65-inch, 16:9 aspect ratio
   Contrast Ratio        Max 5000:1
Screen size              56.5" (1,434 mm) (W)
