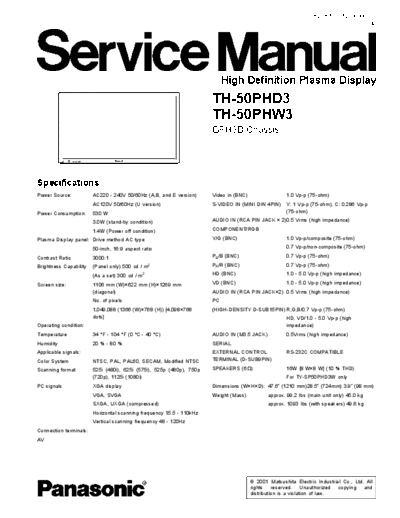

GPH3D TH-50PHD3 TH-50PHW3


>> Download GPH3D TH-50PHD3 TH-50PHW3 documenatation <<

Text preview - extract from the document
                                                                                                               ORDER NO. ITD0105002C0
                                                                                                                                  D10




                                                                           High Definition Plasma Display
                                                                      TH-50PHD3
                                                                      TH-50PHW3
                                                                      GPH3D Chassis




Specifications
Power Source:           AC220 - 240V 50/60Hz (A,B, and E version)     Video in (BNC)                  1.0 Vp-p (75-ohm)
                        AC120V 50/60Hz (U version)                    S-VIDEO IN (MINI DIN 4PIN)      Y: 1 Vp-p (75-ohm), C: 0.286 Vp-p
Power Consumption:      530 W                                                                         (75-ohm)

                        3.0W (stand-by condition)                     AUDIO IN (RCA PIN JACK
