Service Manuals, User Guides, Schematic Diagrams or docs for : panasonic PDP GPH10D TH-42PH10BK TH-42PH10BS TH-42PH10EK TH-42PH10ES

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

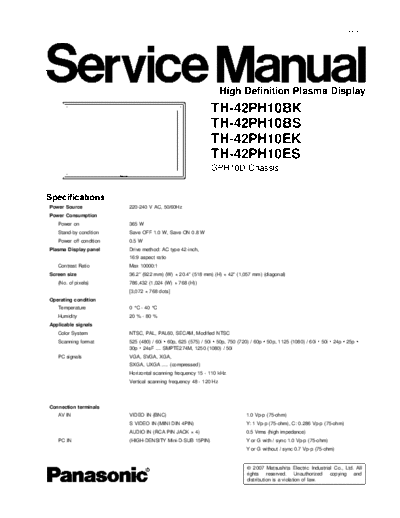

Image preview - the first page of the document
GPH10D TH-42PH10BK TH-42PH10BS TH-42PH10EK TH-42PH10ES


>> Download GPH10D TH-42PH10BK TH-42PH10BS TH-42PH10EK TH-42PH10ES documenatation <<

Text preview - extract from the document
                                                                                                   ORDER NO. PCZ0705048CE




                                                                   High Definition Plasma Display
                                                             TH-42PH10BK
                                                             TH-42PH10BS
                                                             TH-42PH10EK
                                                             TH-42PH10ES
                                                             GPH10D Chassis


Specifications
Power Source             220-240 V AC, 50/60Hz
Power Consumption
   Power on              365 W
   Stand-by condition    Save OFF 1.0 W, Save ON 0.8 W
   Power off condition   0.5 W
Plasma Display panel     Drive method: AC type 42-inch,
                         16:9 aspect ratio
   Contrast Ratio        Max 10000:1
Screen size              36.2" (922 mm) (W)
