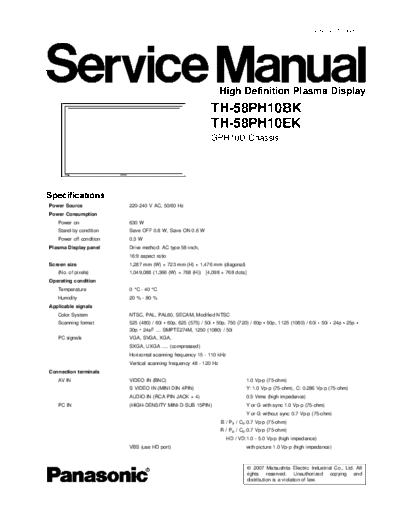

Image preview - the first page of the document



>> Download GPH10D TH-58PH10BK TH-58PH10EK documenatation <<

Text preview - extract from the document

                                                                                                        ORDER NO. PCZ0706065CE




                                                                   High Definition Plasma Display
                                                             TH-58PH10BK
                                                             TH-58PH10EK
                                                             GPH10D Chassis




Specifications
Power Source             220-240 V AC, 50/60 Hz
Power Consumption
   Power on              630 W
   Stand-by condition    Save OFF 0.8 W, Save ON 0.6 W
   Power off condition   0.3 W
Plasma Display panel     Drive method: AC type 58-inch,
                         16:9 aspect ratio
Screen size              1,287 mm (W)
