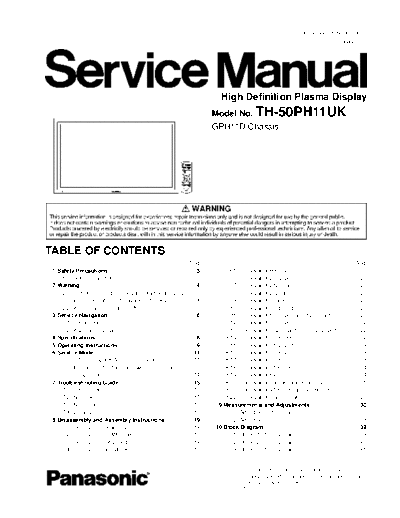

Image preview - the first page of the document
>> Download GPH11D TH-50PH11UK documenatation <<
Text preview - extract from the document
Order Number MTNC080536CE
B34 Canada: D10
High Definition Plasma Display
Model No. TH-50PH11UK
GPH11D Chassis
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 8.5. Removal of HX-Board----------------------------------- 20
1.1. General Guidelines---------------------------------------- 3 8.6. Removal of DS-Board----------------------------------- 20
2 Warning -------------------------------------------------------------- 4 8.7. Removal of DN-Board ---------------------------------- 20
2.1. Prevention of Electrostatic Discharge (ESD) 8.8. Removal of D-Board------------------------------------- 21
to Electrostatically Sensitive (ES) Devices---------- 4 8.9. Removal of P-Board------------------------------------- 21
2.2. About lead free solder (PbF)---------------------------- 5 8.10. Removal of H3-Board (L, R)--------------------------- 21
3 Service Navigation ----------------------------------------------- 6 8.11. Removal of SU-Board and SD-Board--------------- 21
3.1. Service Hint ------------------------------------------------- 6 8.12. Removal of SC-Board----------------------------------- 22
3.2. Applicable signals ----------------------------------------- 7 8.13. Removal of SS2-Board and SS3-Board------------ 22
4 Specifications ----------------------------------------------------- 8 8.14. Removal of SS-Board----------------------------------- 22
5 Operating Instructions------------------------------------------ 9 8.15. Removal of C1-Board ----------------------------------- 23
6 Service Mode -----------------------------------------------------11 8.16. Removal of C2-Board ----------------------------------- 23
6.1. CAT (Computer Aided Test) mode ------------------- 11 8.17. Removal of C3-Board ----------------------------------- 23
6.2. IIC mode structure (following items value is 8.18. Removal of S1-Board ----------------------------------- 24
sample data) -----------------------------------------------14 8.19. Removal of Fan------------------------------------------- 24
7 Troubleshooting Guide ----------------------------------------15 8.20. Removal of Cabinet and Front Glass --------------- 25
7.1. Self Check--------------------------------------------------15 8.21. Removal of V1-Board and V2-Board---------------- 26
7.2. No Power ---------------------------------------------------17 8.22. Removal of Plasma Panel ----------------------------- 26
7.3. No Picture --------------------------------------------------17 9 Measurements and Adjustments -------------------------- 30
7.4. Local screen failure --------------------------------------18 9.1. Adjustment Procedure ---------------------------------- 30
8 Disassembly and Assembly Instructions ---------------19 9.2. Adjustment------------------------------------------------- 33
8.1. Removal of Rear Cover ---------------------------------19 10 Block Diagram --------------------------------------------------- 39
8.2. Removal of HDMI-Board--------------------------------19 10.1. Block (1 of 8) Diagram ---------------------------------- 39
8.3. Removal of HA-Board -----------------------------------19 10.2. Block (2 of 8) Diagram ---------------------------------- 40
8.4. Removal of Slot Block -----------------------------------19 10.3. Block (3 of 8) Diagram ---------------------------------- 41
