Service Manuals, User Guides, Schematic Diagrams or docs for : panasonic PDP GPH5D TH-42PHD5 TH-42PHW5

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

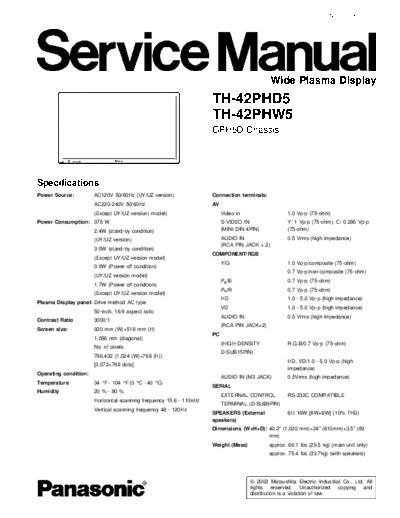

Image preview - the first page of the document
GPH5D TH-42PHD5 TH-42PHW5


>> Download GPH5D TH-42PHD5 TH-42PHW5 documenatation <<

Text preview - extract from the document
                                                                                                              ORDER NO. ITD0207017C0
                                                                                                                                 D10




                                                                                               Wide Plasma Display
                                                                     TH-42PHD5
                                                                     TH-42PHW5
                                                                     GPH5D Chassis




Specifications
Power Source:          AC120V 50/60Hz (UY/UZ version)                Connection terminals:
                       AC220-240V 50/60Hz                            AV
                       (Except UY/UZ version) model)                      Video in                   1.0 Vp-p (75-ohm)
Power Consumption: 375 W                                                  S-VIDEO IN                 Y: 1 Vp-p (75-ohm), C: 0.286 Vp-p
                       2.4W (stand-by condition)                          (MINI DIN 4PIN)            (75-ohm)

                       (UY/UZ version)                                    AUDIO IN                   0.5 Vrms (high impedance)
                                                                          (RCA PIN JACK
